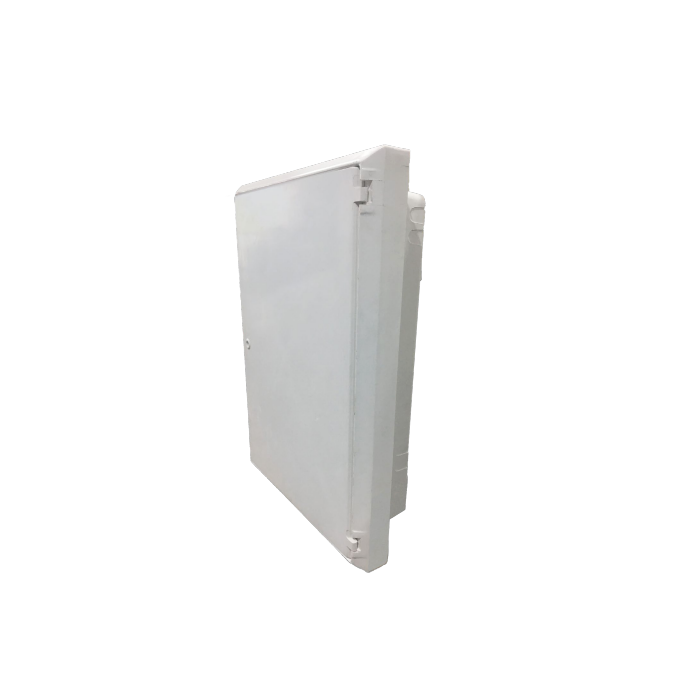

Large 3 Phase Recessed / Large Permali Recessed Electric Meter Box (797 x 567 x 180mm)
Large 3 Phase Recessed Mounted Electrical Meter Box (may also be referred to as a Large Permali Electric Meter Box). This meter box comes supplied with hinges, lock and key.
Dimensions
- Height: 797mm
- Width: 567mm
- Depth: 180mm
Colour
- White
Large 3 Phase Recessed Mounted Electrical Meter Box (may also be referred to as a Large Permali Electric Meter Box). This meter box comes supplied with hinges, lock and key.
Dimensions
- Height: 797mm
- Width: 567mm
- Depth: 180mm
Colour
- White
Specifications
- Compliant to British Standard BS 8567:2012
- Constructed from GRP – Glass Reinforced Plastic
- Fire retardant to BS 476, Part. 7, 1997, Class 2
- Complies to ESI standard 12-3 April, 1986
- Suitable for all meters including prepay and smart
- Will not corrode, weather resistant
- Easily cleaned and can be painted
- Multiple cable knock out positions
- Complete with timber backboard, hinges, lock and key
- Hinges on right
Fitting instructions
- This meter box should be installed by a qualified electrician
- Minimum wall cut out is 715 x 485mm
Product download
Large 3 Phase Recessed Mounted Electrical Meter Box Specification Sheet
Know more about three phase electric power in the UK!
| Height (mm) | 797 |
|---|---|
| Width (mm) | 567 |
| Depth (mm) | 180 |
| Type | Electric |
| Meter Box Fit | Recessed |
Write Your Own Review
Hanging a Meter Box
No. All meter boxes are designed to get installed in one particular way. For example, the hinges are on the left- hand side on a UK Standard Recessed Electric Meter Box, so the door must get hinged on the left-hand side.
However, in certain circumstances, especially if replacing an older damaged box or renovating older houses, technically it can be fitted upside down. However, you will be to confirm with your meter equipment provider that they are happy for you to install their equipment that... Read more
Hello, it's possible but there is only about 30mm off the surface of the wall.
No, the Large 3 Phase Recessed Electric Meter Box does not require a lintel.
-
